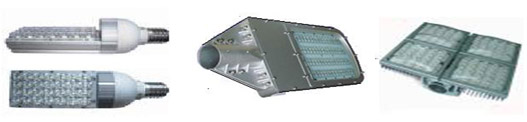

LED Street Lights
Model: CDLR-2835 Model: CDLR-5060 Model: CDLR-120150
Power : 28W Power: 60W Power: 120W
Luminous Flux :2240 Lumen Luminous Flux: 4500 Lumen Luminous Flux: 10000 Lumens
Height : 15 Ft. Height: 15 / 30 Ft. Height: 30 Ft
FEATURES
High Energy Efficient and Power Savings
Fits in existing pole sizes / Standard Sockets
Long Life Span > 60,000 Hrs
Lower Operational Cost
Air Circulation Controlled by Super-High
Heat Dissipation Capacity
High Brightness
Excellent Colour Rendering
Eco-Friendly Green Product
Safe Light – No UV or IR in beam
Vibration Resistance
Weather Proof Design (IP65)
STANDARD PARAMETERS
Input Voltage : AC 100V to 240V
Frequency : 50 / 60 Hz
Power Factor : > 90%
THD Level : < 20%

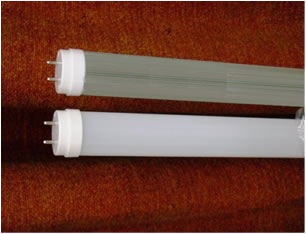

LED DIP Tube Light
MODELS
Model: CT810W60-MA Model: CT820W120-AL
Power: 10W Power: 20W
Luminous Flux: >700 Lumen Luminous Flux: >1400 Lumen
FEATURES
•High Energy Efficient and Power Savings
•Fits in existing tube holders – Choke/Ballast and starter not required
•Long Life Span > 35,000 Hrs
•No Maintenance Cost
•Low Heat Dissipation / sink
•High Brightness
•Excellent Colour Rendering
•Eco-Friendly Green Product
•Safe Light – No UV or IR in beam
•Vibration Resistance
•Option to Cool or Warm White Colours
STANDARD PARAMETERS
•LED Viewing Angle : 120o
•Working Temperature : -30 to +85oC
•Storage Temperature : -40 to +100oC
•Colour Rendering Index : > 80
•Power Factor : > 90%
•PC Type : PC / FR4
•Diameter : 30mm
